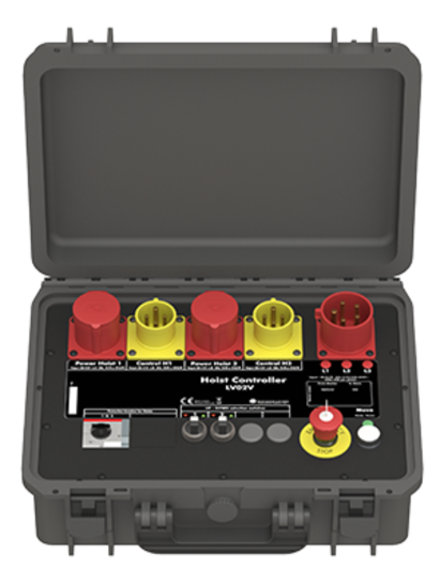

Control 2-channels LV

Low voltage
  • Low voltage controller for group drive of 2 motors
  • In stable and light plastic case
  • For motors with low voltage control
  • With lockable emergency stop
  • With phase and "ready" indicator

Technical specifications

Standard version

Number of channels


Control type

Mobile briefcase

Hoist type

42 V contactor control

Outside dimensions

336 x 300 x 176 mm


5.5 kg


380-415 V / 3 Ph / 47-63 Hz

Power Input

CEE Plug 32 A - 3P+N+E

Power and control outputs

2x CEE Plugs 16 A 3P+E + 2x CEE Plugs 16 A 3P+E


1 Braker for 2 ouput plugs: Max. 10 Ampere

Customer's benefit

Designed for audio and video applications to lift a line-array, truss or a screen. This hoist controller can control simultaneously 2 electric chain hoists. A durable and lightweight controller which can be transported easily for any of your jobs.
The controller is equipped with 32 A CEE connector for the power supply.

Strong & waterproof case
Protected by a waterproof case made of copolymer polypropylene. Our controller is resistant to impacts, dust and rain. You can take it with you anywhere, even in the sometimes harsh environment of shows and festivals!

Steel framework
Our hoist controller isn't an empty shell ! It is strengthened with a galvanized steel framework which provides a strong and durable anchor to the components, ensuring that they will stay in place as time goes by.

Thermal magnetic circuit breakers
This kind of breaker is specifically designed for eletric motors and protects your hoist against power surges and short circuits whilst allowing the intensity peak that occurs when starting electric hoists.

Lockable emergency stop
The emergency stop button offers an immediate and grouped stop of the hoists when a dangerous situation occurs. It needs the key to be unlocked, ensuring that the operator does not resume lifting operations without being aware of that an emergency situation has previously occured. It can also be used to simply lock the controller in order to make sure it will not be used when the operator is away.

Phase indicator lights
Check your power input to make sure that all phases are present before using the controller, to avoid damaging your hoists!

'READY' indicator
This light indicates that your controller is ready for action : all 3 phases are present, the E-Stop is disengaged and none of your circuit breakers is tripped (only for controllers that have several circuit breakers).

Accessories & options

  • SMART-LINK for the connection of several controllers
  • Control with more channels
