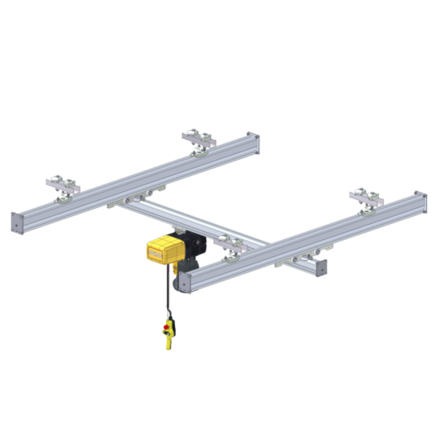

Light crane system with electric chain hoist used as indoor crane

Single bridge suspended crane GISKB steel

up to 1600 kg
  • Crane system for regular or optimised construction height
  • Suspension crane track rigid or pendulating
  • Manual or steplessly electrical crane and cross travel
  • Profile reinforcement to increase span width
  • Option: Crane system wiith multiple crane bridges
  • Option: telescopic jib

Technical specifications

Standard version

Maximum load capacity

1600 kg

Profile sizes

4 (GISKB I, II, III, IV), to be combined flexibly

Colour steel beams

Light grey RAL 7035


Single bridge suspended crane standard or low headroom execution

Crane and cross travel

Manually or electrically (Electric tug frequency controlled)


Trolleys and rolling apparatuses with quiet plastic rollers


Suspension rigid direct, pendulating short or distanced

Power supply

Trailing cable, C-rail or external conductor line

Customer's benefit

GISKB suspension cranes offer the optimal solution for the area-covering and safe transport of goods. Depending on the load, span and transport route, various profile sizes are available. These can be combined with each other as crane tracks or crane bridges.

Crane and cross travel is carried out manually or electrically (stepless). Trolleys with plastic rollers ensure low-noise and smooth-running moving of loads. As lifting device serves a GIS electric chain hoist.

Due to the modular design GIS KB overhead cranes are easy to plan and install. All components are screwable. This allows subsequent retrofitting and extension of existing systems without problems. The pendulating or rigid suspension is adjusted to the existing ceiling construction. For power supply a trailing cable, a C-rail or a conductor line can be chosen.

Accessories & options

  • Radio remote control
  • Travel limit switch for electrical moving
  • Profiles in customer-specific colours
  • Zinc-plated profiles
  • Suspended cranes with branch terminal lines
  • Suspended cranes with one or two-sided telescopic jib
  • Crane tracks with several transverse bridges
  • Drop stations
  • Console cranes
  • Shelf-storage operation units
  • Freestanding systems
  • Special suspensions
  • Power supply via energy chain or internal conductor line
  • Roving pendant


light crane system with electric chain hoist for equipping machinesElectric chain hoist with sheet material grab to lift wood platesLightweight crane system with crane girder reinforcement for a larger span widthLight crane system with galvanised profiles for outdoor usecrane system with chain hoist for quick, manual transport of goodsA crane system in a workshop with a very low spaceThe crane system is integrated into the production hall on cantileversCrane system in joinery for effortless panel transportCrane system for goods handling at the workplaceCrane system ensures safe flow of goods between the work stations
