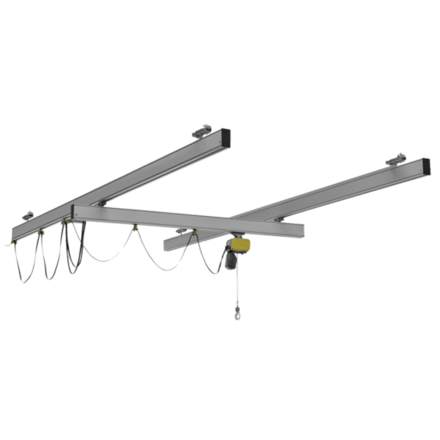

Crane system GISKB Alu
- Crane system with aluminium profiles GISKB Alu
- As single or double bridge suspended crane or monorail
- For regular or optimised construction height
- Suspension crane track and monorail pendulating
- Manual crane and cross travel
- Perfect smooth running of the trolleys
4 (GISKB I, II, III, IV), to be combined flexibly
Monorail or single/double bridge suspended crane standard or low headroom execution
Trolleys and rolling apparatuses with quiet plastic rollers
Suspension pendulating short or distanced
Trailing cable, C-rail or external conductor line
With the GISKB Alu crane system, goods weighing up to 630 kg can be moved manually with ease. This is ensured by the low dead weight of the aluminium profiles together with the low rolling resistance of the trolleys used. The even load distribution on all rollers prevents jamming of the trolleys, even in case of diagonal pulling. A large working area and diverse combination possibilities ensure highest flexibility. The construction kit allows mounting the crane system to an existing steel construction, a concrete or wooden ceiling or a customised upper construction.
Thanks to the low weight of the aluminium profiles and the flexible connection options equipment installation is carried out quickly and easily. The modular construction-kit system allows smooth retrofitting or extension of an existing crane system at any time.
Perfect smooth running
Due to the excellent running properties of the low moving mass the working speed is increased while positioning is precise. This leads to significantly shorter cycle times, which has a positive effect on the production costs and productivity.
The modular construction-kit system can be configured flexibly and can easily be integrated into every existing or new infrastructure. The natural-coloured anodised crane rails make the crane system appear sophisticated. Height differences can be compensated easily.
Accessories & options
- Suspended cranes with one or two-sided telescopic jib
- Crane tracks with several transverse bridges
- Feeestanding system
- Combination with GISKB Steel or IPE beams
- Special suspensions
- Power supply via energy chain
- Roving pendant
