Explosive atmospheres can arise in many branches of industry, for example in the extraction of raw materials, in the chemical or petrochemical industry, in food production or also in energy supply.
Electrical lifting equipment used in an explosive environment must be designed so that it does not become a source of ignition.

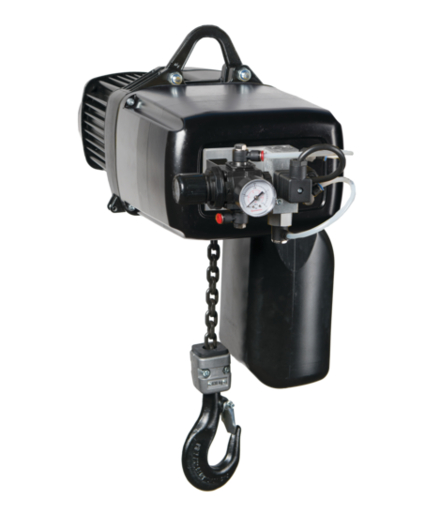

Based on the basic GP model, we offer explosion-protected electric chain hoists for zones 22 and 2:

• The dust-protected ATEX version achieves the required protection class Zone 22 through temperature monitoring (Klixon) in the motor, which prevents overheating, through design to protection class IP65 against the ingress of dust or jet water and through special cable glands.
• The gas proof ATEX version (zone 22 and zone 2) additionally prevents gases, steams or fogs from entering by means of a 0.4 bar overpressure inside the casing which constantly feeds compressed air by an external air supply. In case of an air pressure drop, the operating voltage will be interrupted instantly and the lifting respectively travel process is stopped immediately.

Particularly with a highly sensitive topic such as explosion protection, the greatest caution and care is required. We therefore recommend that you seek advice from a GIS sales consultant or one of our sales partners.

• Worldwide operating and control voltages
• Hook suspension
• Safety load hook
• Chain bucket for various lifting heights
• Corrosion resistant version
• Electric and push trolleys
