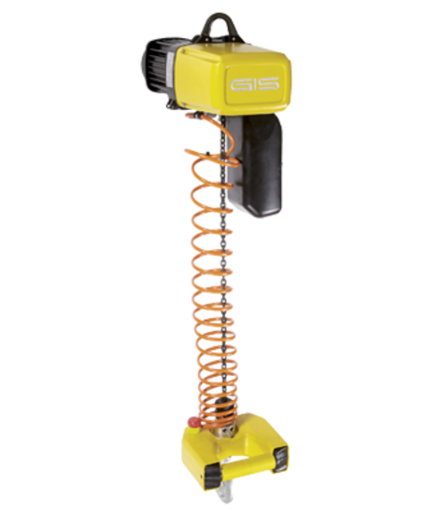

Handy chain model for quick and easy positioning of loads

Handy chain model

GPMH250 + GPH500, up to 500 kg
  • The electric chain hoist for fast and effortless positioning of loads
  • Control of electric chain hoist and guidance of the load with one hand
  • Control unit with rocker switch for left- and right-handed operation
  • Hook end positions adjustable by geared limit switch
  • Perfect to combine with GISKB slewing or suspended crane
  • Option: handy kit for retrofitting of GIS standard electric chain hoist
  • Option: with frequency inverter
  • Option: customised devices for load handling

Technical specifications

Standard version

Maximum load capacity

GPMH250: 250 kg, GPH500: 500 kg


Standard voltages

3 × 400 V / 50 Hz, 3 × 230 V / 50 Hz


3 phase motor

2 lifting speeds


Control

42 V low voltage control


Protection class

IP65


Suspension

Eyebolt suspension


Standard lifting height

GPMH250: 3 m, GPH500: 4 m


Control switch

Control unit for left and right hand operation


Limit switch

Geared limit switches for highest and lowest hook position


Isolation class (motor)


Brake

DC spring-loaded brake


Overload protection

Slipping clutch adjustable and not in the flow of forces


Customer's benefit

The Handy chain model makes the transport of small loads such as boxes or containers economical.

Increased lifting speed and creep speed as a standard enable precise placement of the load. For particularly sensitive handling, the chain hoist can be equipped with a frequency converter so that accelerations and lifting speeds can be freely selected.

The control unit is rigidly connected to the load handling attachment; this makes it easy to guide the load with just one hand. For a safe and fast load pick-up, the pick-up device can be adjusted to the load that is to be conveyed.

All these features make the GPH hoist an ideal manipulator for the workplace with many repetitive tasks. It can be used stationary or ideally combined with a GISKB crane system or a slewing crane.

Accessories & options

  • Worldwide operating and control voltages
  • Load handling by load hook or coupling piece
  • Hook suspension
  • Operating data counter
  • Temperature monitoring to protect the motor against overheating
  • Brake with manual release
  • Frequency inverter
  • Push trolleys
  • Slack chain device

Gallery

Aluminium crane system ensures ergonomic and fast handling of goodsChain handy is used to load workpieces in the machine factoryBuilding blocks are lifted by means of a Handy chain hoist and a special load receptorPacking of cardboard boxes with Handy chain hoist
