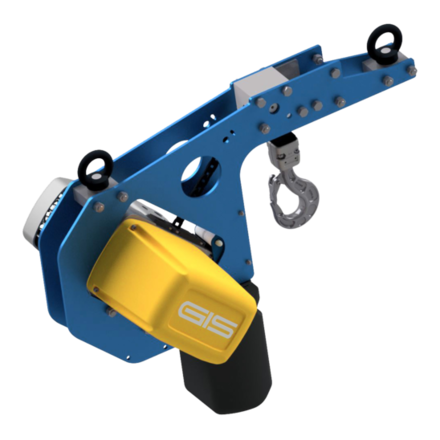

Electric chain hoist low headroom version GPK

Electric chain hoist low headroom version

GPK500 - 1600, up to 4000 kg
  • Lifting solution for tight spaces and particularly low rooms
  • Obtaining room height using a sophisticated chain guide
  • Hook position adjustable by gear limit switch
  • Available with a lengthened frame for transporting large and bulky loads
  • Electric chain hoist with 1 or 2 lifting speeds
  • Optionally with trolleys
  • Optionally with frequency inverter

View the low headroom hoist in the showroom ➜

Technical specifications

Standard version

Maximum load capacities (1 or 2 falls)

GPK500: 500/1000 kg, GPK1000: 1000/2000 kg, GPK1600: 2000/4000 kg

Standard voltages

3 × 400 V / 50 Hz, 3 × 230 V / 50 Hz

3 phase motor

1 or 2 lifting speeds


42 V low voltage control

Protection class



Eyebolt suspensions

Standard lifting height

3 m

Control switch

Ergonomic control switch with emergency-stop and external strain relief

Control cable length

1,8 m

Limit switch

Geared limit switches for highest and lowest hook position

Isolation class (motor)


DC spring-loaded brake

Overload protection

Slipping clutch adjustable and not in the flow of forces

Customer's benefit

These electric chain hoists are designed for particularly low rooms and tight spaces. The chain is deflected upwards by a special guide to maximise the lifting height. To prevent large bulky loads from colliding laterally with the chain hoist housing, the hook spacing can be extended as required so that the lifting height can be fully utilised.

For moving workpieces from one workstation to another, this electric chain hoist can be combined space-savingly with manual and motorised trolleys. To get the most out of the limited space available, we recommend combining the electric chain hoist with a GIS crane system or slewing crane. o make the most of the limited space available, we recommend combining the electric chain hoist with a GIS crane system or a slewing crane. Thanks to our experienced technical department, we can work out a customised solution for you that can be optimally integrated into the space or hall.

Accessories & options

  • Lengthened frame for large and bulky loads
  • Automatic chain oiling system
  • Direct control, special control
  • Worldwide operating and control voltages
  • Geared limit switch with two additional emergency stops
  • Operating data counter
  • Frequency inverter
  • Temperature monitoring to protect the motor against overheating
  • Brake with manual release
  • Chain bucket for various lifting heights
  • Hook suspensions
  • Safety load hook
  • Electric and push trolleys
  • Radio remote control

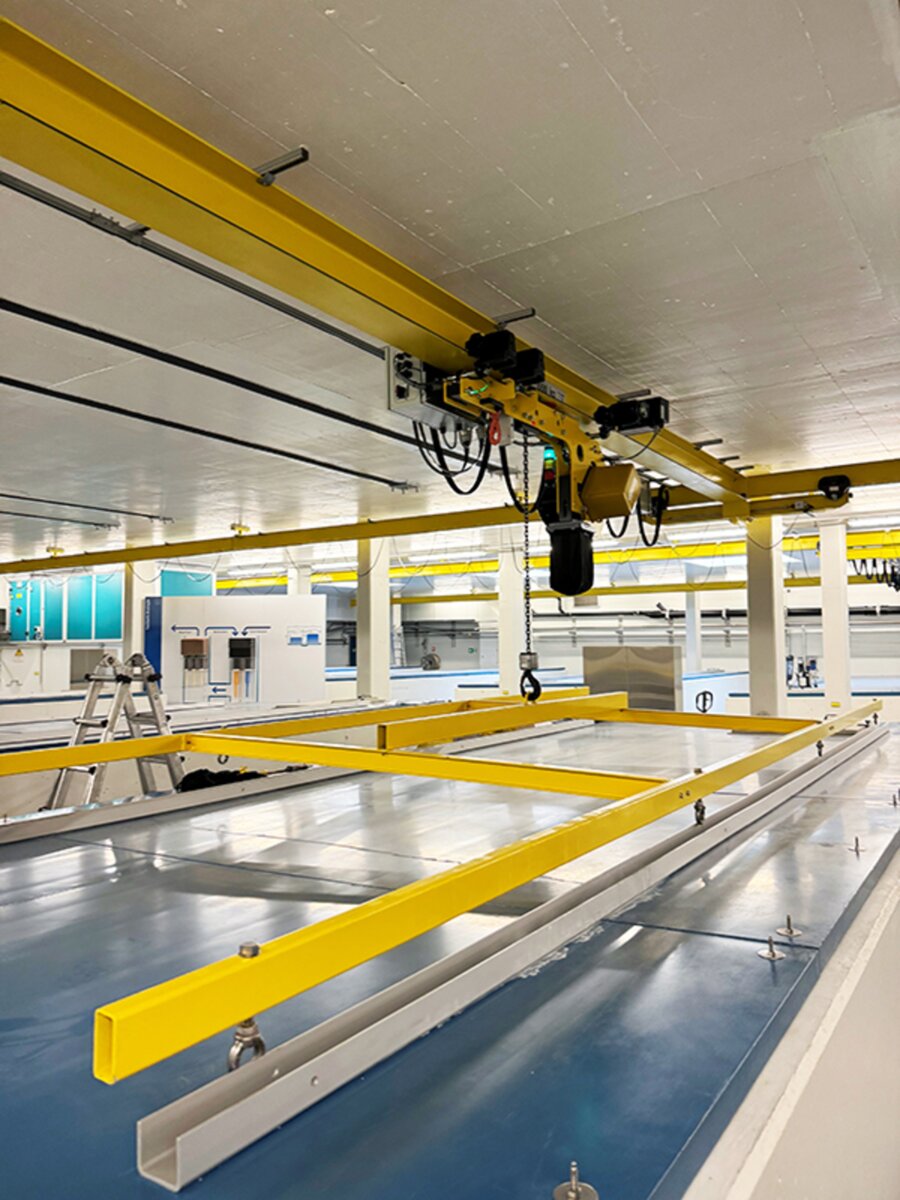

In very tight spaces, a container is moved with a crane systemCrane system with synchronous electric chain hoists for transporting goods in narrow tunnel systemsElectric chain hoist with low headroom for very low space in combination with overhead monorail GISKBMobile crane is used in clean room for careful transport
