Indoor crane for the transport of heavy loads

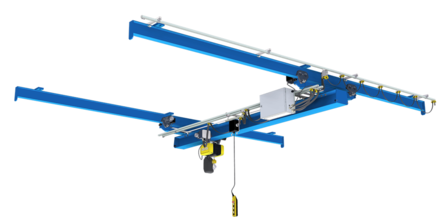

Underslung travelling crane

up to 6300 kg
  • As single- or double-bridge travelling crane
  • Construction with standardised beams
  • Control switch on trolley or control switch independent of trolley (roving pendent) or radio remote control
  • Crane track fixation to ceiling, pillars or steel beams, mounted directly or distanced (free standing system)
  • Standard drives GMF stepless or pole-changeable
  • Lateral overhang of hook possible
  • Longitudinal power supply with conductor line or trailing cable
  • Cross beam power supply via conductor line, cable or energy chain
  • Option: multiple crane bridges (Tandem operation)
  • Option: low headroom construction for transverse bridge
  • Option: branch terminal line possible

Technical specifications

Standard version

Maximum load capacity

6300 kg


Execution

Single or double bridge travelling crane,  with or without low headroom construction to optimize the overall height


Profiles

Use of commercial I- or H- standardised steel profiles


Colour crane bridge

Honey yellow RAL 1005


Colour crane track

Grey primed RAL 7035


Crane and cross travel

Manually or electrically (Fixed travelling speeds or frequency controlled)


Trolleys

Standard trolleys GHF/GMF


Control

42 V contactor control with central control unit box


Control switch

Control via control button top unit directly on the chain hoist, roving pendent or radio remote control


Power supply

Trailing cable, C-rail, conductor line or energy chain


Crane track fixation

To ceiling, pillars or steel beams, mounted directly or distanced


Customer's benefit

The underslung travelling crane is a popular variation of GIS travelling cranes.
The crane tracks are usually mounted directly to the ceiling. For this reason, the longitudinal trolleys are mounted below.
This solution allows us to incorporate the standard trolleys. Various construction solutions according to our customer’s requirement demand special versions such as higher hook dimension, overhang load, with or without telescopic version, bypass control or large span widths.

Accessories & options

  • Free standing system
  • Special paints or galvanised version
  • Travelling cranes for outdoor use
  • Corrosion resistant (food compatible)
  • Several crane bridges on crane track
  • Extended overhang thanks to counter-pressure rollers
  • Telescopic version
  • Crossings and branch terminal lines
  • Sound-deadening supports
  • Fast and fine transition shutdown
  • Ripcord shutdown
  • Two-stage limit switch
  • Various versions for suitable hook dimension
  • Bypass control
  • Transport and installation work
  • Acceptance and commissioning with training of personnel

Gallery

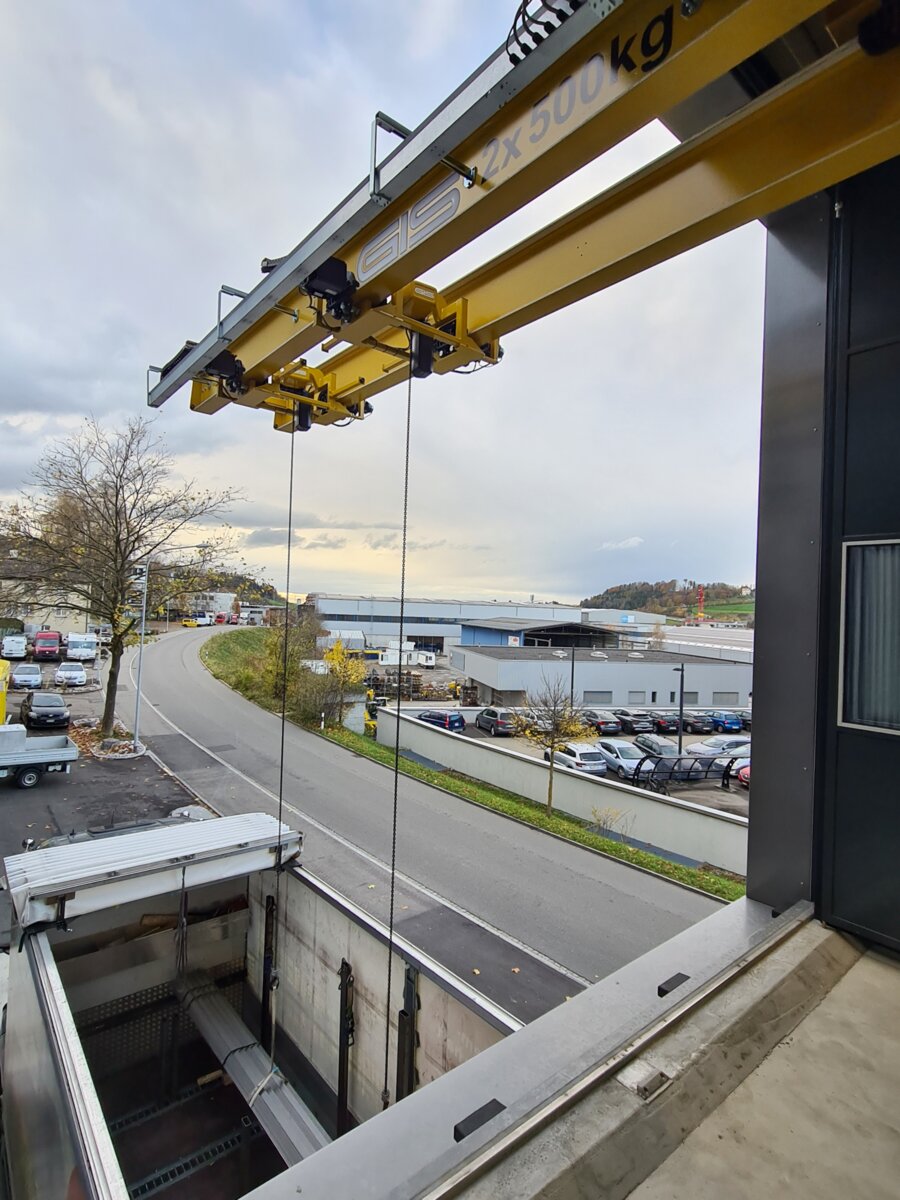

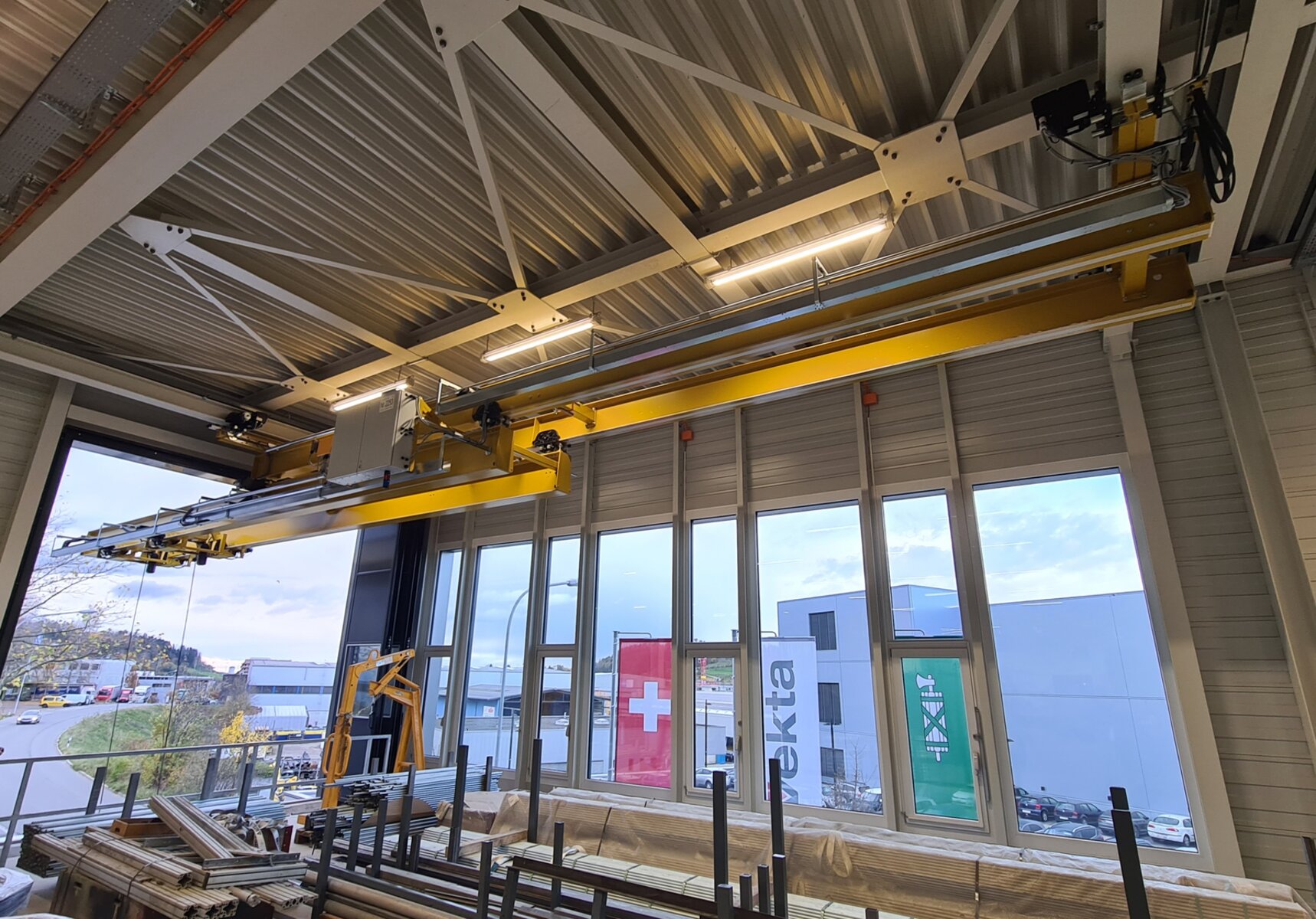

underslung crane for optimum utilization of the room heightA safety-bound crane system from GIS is used for the maintenance of rail vehicles.The overhead crane is used to lift plastic rolls onto the machineHeight-optimised overhead crane for turbine maintenance in power stationOverhead crane joineryThe electrically driven crane system is operated by radio controlMachine components are lifted onto the workbench with the travelling craneIndoor crane with extendable crane bridge for larger working areahall crane lifts long, bulky loadsGIS crane systems as helpers in the maintenance and servicing work of public transport vehicles.Crane system is used for transport of goods in tunnel systemBridge crane is used in cheese dairy for transporting cheeseOverhead crane is used for the loading of machineCrane system ensures in-house logisticsHall crane is optimally integrated into the room and offers a maximum lifting heightCrane system is used for simulations with the mars rovercareful transport of heavy and long wooden boardsOverhead crane transports components for vehicle constructionCrane system for synchronous lifting transports long iron barsUnderslung girder crane for workshop Bridge crane with electric chain hoist for moving loads
