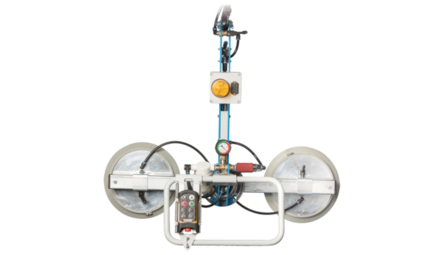

Ejector device GHGE
- Developed for handling glass panels and other airtight transported goods
- Vacuum production with compressed air (no electrical cables necessary)
- With holder for control switch/radio control
- Complete solution including electric chain hoist, crane system or slewing crane
- Sturdy and durable devices
- Small and light device with low purchase costs
- Suction surfaces, traverses and operating panels can be tailored to customer needs
- Fully complies with the European Norm EN 13155 (warning system, two-handed operation, vacuum tank, non-return valve)
Documentation
Technical specifications
Standard version
Customer's benefit
The GHGE ejector device is used for the vertical transport of glass, metal, plastic or other air-impermeable materials. It was specially developed for glazing window panes and is therefore a valued aid in the glass industry, window construction and carpentry workshops. In combination with a GIS electric chain hoist, a crane system or a slewing crane, it provides a compact and economical complete solution for precise material transport in production and assembly.
Vacuum generation using compressed air
Instead of an electric vacuum pump, the GHGE vacuum handling system uses the ejector principle, which generates a powerful vacuum from the available compressed air. This means that no additional power supply is required. Compared to conventional vacuum lifters, the device impresses with its lower purchase costs, compact design and low weight. This facilitates manual handling and ensures comfortable, fatigue-free working even during longer periods of use.
Flexible and ergonomic use
2 or 4 suction surfaces guarantee a secure force connection between the lifting device and the plate to be lifted. These can be moved along the crossbeam and individually adapted to the size and shape of the goods to be transported, for example a glass pane. Suction pads that are not required can be switched off manually. The rotatable crossbeam allows the workpiece to be rotated manually by 90° steps, which is ideal for precise positioning in assembly processes. An integrated holder for the control switch or radio remote control also ensures convenient and ergonomic operation of the entire crane system.
Well-designed safety features for everyday work
Despite its compact design, the GHGE ejector device meets the safety requirements of European standard EN 13155. The integrated non-return valve prevents the generated vacuum from escaping in the event of a compressed air failure or leak. The vacuum reservoir serves as a safety reserve and ensures that the negative pressure in the suction plates remains stable even during short-term fluctuations. A visual warning system also provides early warning of pressure drops so that the load can be lowered in a controlled manner. In combination with the dual confirmation, which prevents unintentional control commands, these functions ensure maximum safety in daily operation.
Accessories & options
- Special suction surfaces and traverses
- Deactivation of single suction surfaces
