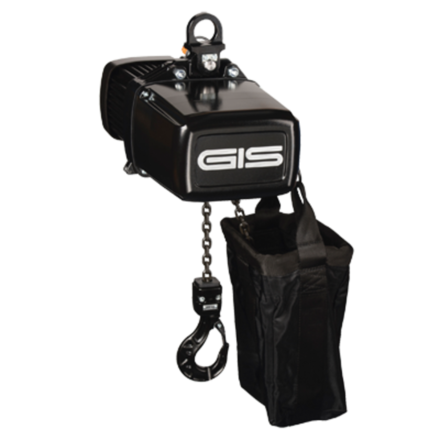

For both path and load measurement, additional components and electrical parts can be easily integrated in the chain hoist. On the drive shaft and/or the chain wheel, the installation of incremental or absolute encoders is prepared for path measurement. Special eyebolt and hook suspensions allow easy installation of a load measuring pin for load measurement. Our partners who develop and supply the control for multiple hoists value this highly.

All LP motors are equipped with a 3-stage self-contained gear. The helical gearing with geometric optimisation and the chain wheel with minimum 5 pockets ensure extremely quiet running. This allows the quiet handling of loads during events. Thanks to the sound absorption of the transmission the sound pressure level of the LP500 is only 60 dB.

• Worldwide operating and control voltages
• Lifting speeds up to 32 m/min at 50 Hz
• Load measuring pin: Output signal 4 – 20 mA
• Mechanical protection for load sensor
• Preparation for path measurement with absolute encoder on chain wheel, without encoder
• Preparation for path measurement with incremental or absolute encoder on rotor shaft (without encoder)
• Safety load locking hook
• Temperature monitoring
• Brake surveillance independent for first and second brake
• Additional rectifier
• Chain container for various lifting heights
• Handles
• Customised adjustments for cable connections
• Flight cases (2 x LP500, 1 x LP1000)
• Push and motorised trolleys
