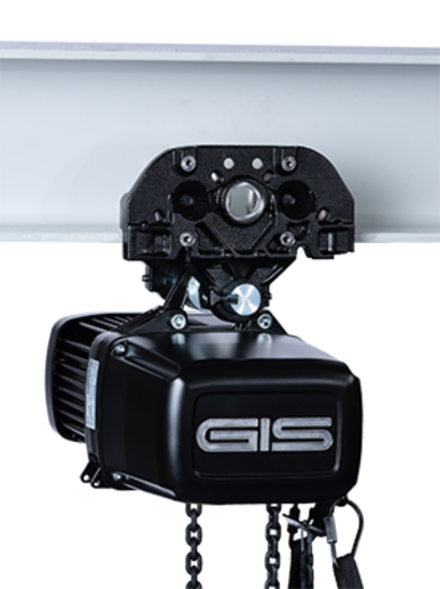

Manual trolley for moving goods manually

Push trolley GHF

GHF1250 - 6300, up to 6300 kg
  • Manual trolley for steel beams
  • Manual or electric chain hoist moved manually
  • Load wheels made of cast iron, with ball bearings
  • Side plates made of cast iron with fall and climbing protection
  • Flange width infinitely variable

Technical specifications

Standard version

Maximum load capacities

GHF1250: 1250 kg, GHF2500: 2500 kg, GHF5000: 5000 kg, GHF6300: 6300 kg


Flange widths

GHF1250: 70 - 140 mm (option: 70 - 240 mm), GHF2500: 88 - 200 mm (option: 88 - 300 mm), GHF5000 / 6300: 91 - 300 mm (option: 91 - 200 mm)


Minimum curve radius (with carrier roller)

GHF1250: 1300 mm, GHF2500: 1800 mm, GHF5000 / 6300: 2200 mm


Material

Side plates and load wheels made of cast iron


Load wheels

Load wheels for flat running surfaces


Support bolt

Galvanised support bolt


Protection

Fall and climbing protection


Customer's benefit

The GHF1250 - 6300 trolleys are designed for maximum flexibility and longevity:

Load wheels with a larger diameter can be matched to the beam surface ensure a longer service life and optimum running properties.

The flange width is infinitely variable by means of a new type of adjustment system and can be fixed easily by using the a locking function. This makes assembly on site easier.

Optionally available support carrier rollers ensure smooth running in curves.

Accessories & options

  • Trolley in corrosion resistant version
  • Carrier rollers for cornering
  • Convex load wheels made of cast iron
  • Plastic load wheels
  • Load wheels made of steel or stainless steel
  • Special support bolts for special flange widths
  • Load temperature grease for bearings to the load wheels
  • Parking brake for GHF1250
