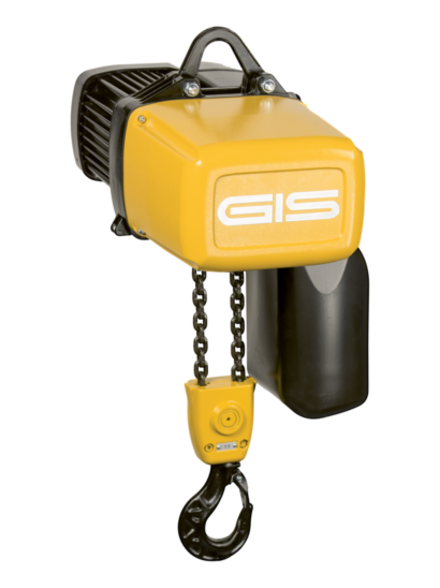

Electric chain hoist GP

GPM250, GP250 - 2500, up to 8000 kg

The GP electric chain hoist is a reliable solution for industrial applications. It impresses with its reliability, long service life and versatility - even under the most demanding conditions.

Reliable and long-lasting

3 year warranty on all GP electric chain hoists
Designed for a service life of 1600 h (DIN EN 14492 A5, ISO M5)
All GP chain hoists with IP65 protection as standard: Dust proof and protected against
water jets

Easy to operate

Hoists with up to 60 % higher lifting capacity compared to the previous model
Quiet running with 3-step drive and helical gearing
Polygon connections ensure quick assembly and disassembly

Customer specific

Chain hoists in three- or single-phase version
Direct control, special control, radio remote control, frequency inverter
Special versions such as synchronized electric chain hoist, low headroom version, corrosion resistant version, ATEX

Documentation

Technical specifications

Standard version

Maximum load capacities (1 or 2 falls)

GPM250: 320 kg, GP250: 400/630 kg, GP500: 800/1250 kg, GP1000: 1600/2500 kg, GP1600: 2500/5000 kg, GP2500: 4000/8000 kg

Standard voltages

3 × 400 V / 50 Hz, 3 × 230 V / 50 Hz
1 × 115 V / 50 Hz, 1 × 230 V / 50 Hz

3 phase motor

1 or 2 lifting speeds

1 phase motor

1 lifting speed

Control

42 V low voltage control

Protection class

IP65

Suspension

Eyebolt suspension

Standard lifting height

3 m

Control switch

Ergonomic control switch with emergency-stop and external strain relief

Control cable length

1,8 m

Limit switch

Geared limit switches for highest and lowest hook position

Isolation class (motor)

Brake

DC spring-loaded brake

Overload protection

Slipping clutch adjustable and not in the flow of forces

The GP electric chain hoist was designed for the discerning user. It is simple in its structure and does not contain any sensitive electronics, which minimizes the risk of operational interruptions. The hoist is characterised by quiet running and is made for longevity whilst working hard thanks to the powerful motor with low operating temperature. Maintenance is easy, quick and needs no special tools.

Profile steel chain
The case hardened and manganese phosphated profile steel chain provides about 15% more capacity at an identical nominal diameter compared to the traditional round steel chain. The larger cross-sectional area reduces wear and increases the lifetime of the chain. The load hook with stable, guided hook latch and safety rubber buffer provides maximum safety.

Polygonal connections
The inner part of the modularly designed chain hoist embodies real innovation. All shaft-hub connections are built to a polygonal design. This allows significantly faster disassembly and assembly during maintenance and thus reduces service costs. The service cost can be considerably reduced due to time savings.

Protection class IP65
A feature of the hoist and the control switch is the protection class IP65. It is dust proof and protected against water jets. As it is compact and robust designed, the GP is best suited for dusty environments as well as for outdoor operation.

Control switch
The control switch fits comfortably in your hand and is ergonomically designed. It is robust, impact resistant, safe to operate and controlled by 42 V low voltage. Push buttons placed in parallel increase the ease of operation. The external strain relief protects the control cable.

For these reasons, GIS electric chain hoists are used everywhere, where process safety of crane systems is important: in the hard three-shift operations in the automotives and other high production industries, in dusty or chemical aggressive environments, for outdoor use, for the entertainment industry or for extreme lifting heights in wind power plants. GIS electric chain hoists and trolleys are made to high standards. We grant a 3-year guarantee for our GP chain hoists.
