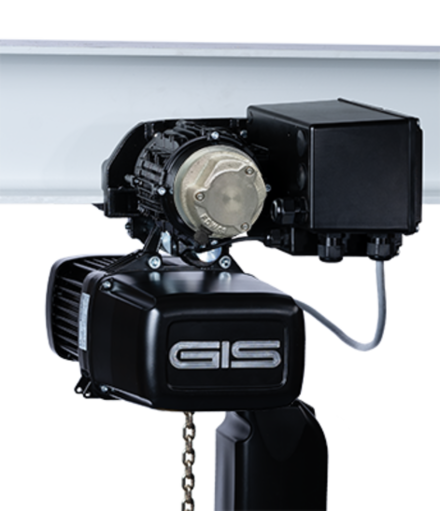

Motorised trolley corrosion resistant
GMFR1250 + 2500, up to 1250 kg
- Corrosion resistant motorised trolley for steel beams
- Side plates cataphoresis coated with fall and climbing protection
- Load wheels made of stainless steel
- 1 or 2 travelling speeds
- Spindle corrosion resistant
- Flange width infinitely variable
- Control box cataphoresis coated with easily accessible connections
- Option: radio remote control
Documentation
Technical specifications
Standard version
Special features:
- Protection class IP65
- Load wheels, support bolt and screws made of stainless steel
- Control box, side plates and counterweight cataphoresis coated coated, resistant against water, oils, scant alkalis and acids
- Food proofed gear grease
Customer's benefit
Demands in the food industry (e.g. cheesemaking or meat processing) are particularly stringent. The corrosion-resistant motorized trolley GMFR is ideal for such applications.
The larger diameter of the load wheels, the helical gear parts and load wheels which can be matched to the beam surface ensure a longer service life and optimum running properties.
The flange width is infinitely variable by means of a new type of adjustment system and can be fixed easily by using the a locking function.
Due to their good handling characteristics and their longevity, GIS trolleys are often used by our customers as components for end carriage of underslung travelling cranes.
Accessories & options
- Trolleys in ATEX version
- Direct control, special control
- Radio remote control
- Festoon mounted pendant control box
- Frequency inverter
- Worldwide operating and control voltages
- Special speeds available on request
- Carrier rollers for cornering
- Convex load wheels made of stainless steel
- Plastic load wheels
- Special support bolts for special flange widths
- Temperature monitoring to prevent the motor from overheating
- Counterweight modularly expandable
