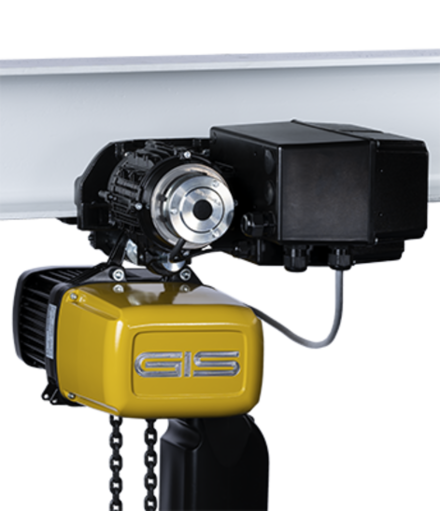

Motorised trolley frequency controlled
GMFFU1250 - 6300, up to 6300 kg
- Motorised trolley with frequency inverter
- Basic specification like GMF 1250 - 6300
- Transport without oscillation and precise positioning of loads
- Soft start for high demands
- 2 speeds are programmable: for starting / positioning and travel
- Speed 3.6 - 30 m / min.
- Optionally with remote control
Documentation
Technical specifications
Standard version
Customer's benefit
The frequeny converter of the electric trolley allows you to adjust the 2 travelling speeds as well as the acceleration according to requirements.
It guarantees you ideal conditions for a swinging free movement and precise positioning of the load.
Accessories & options
- Trolley in corrosion resistant version
- Radio remote control
- Festoon mounted pendant control box
- Worldwide operating and control voltages
- Special speeds available on request
- Travel limit switch 1 or 2 stages
- Carrier rollers for cornering
- Convex load wheels made of cast iron
- Plastic load wheels
- Load wheels made of steel or stainless steel
- Special support bolts for special flange widths
- Gear grease for low temperature use / food industry
- Temperature monitoring to prevent the motor from overheating
- Protection class IP65
- Counterweight modularly expandable
