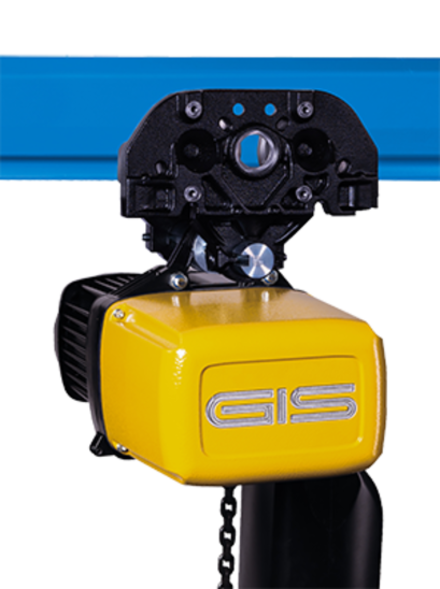

![Push trolley GHF Manual trolley for moving goods manually](/gis%20ag/mediathek/images/produkte/03-fahrwerke/freigestellte%20Bilder/image-thumb__282__product-image/Handfahrwerk%20GHF%20mit%20Elektrokettenzug%20GP%2C%20freigestellt.png)
Push trolley GHF
GHF1250 - 6300, up to 6300 kg
- Manual trolley for steel beams
- Manual or electric chain hoist moved manually
- Load wheels made of cast iron, with ball bearings
- Side plates made of cast iron with fall and climbing protection
- Flange width infinitely variable
Technical specifications
Standard version
Customer's benefit
The GHF1250 - 6300 trolleys are designed for maximum flexibility and longevity:
Load wheels with a larger diameter can be matched to the beam surface ensure a longer service life and optimum running properties.
The flange width is infinitely variable by means of a new type of adjustment system and can be fixed easily by using the a locking function. This makes assembly on site easier.
Optionally available support carrier rollers ensure smooth running in curves.
Accessories & options
- Trolley in corrosion resistant version
- Carrier rollers for cornering
- Convex load wheels made of cast iron
- Plastic load wheels
- Load wheels made of steel or stainless steel
- Special support bolts for special flange widths
- Load temperature grease for bearings to the load wheels
- Parking brake for GHF1250
