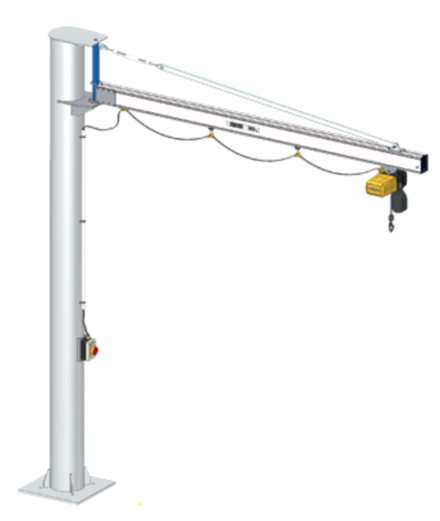

Slewing crane with aluminium jib for smooth movement of the load

Slewing pillar crane GISKB Alu

up to 500 kg
  • Aluminium jib profile GISKB Alu
  • Treads inside the profile protected from dirt
  • Perfect smooth running during turning and longitudinal travel
  • Slewing range up to 270°
  • Jib length up to 6 m, longer jibs on request
  • Option: equipped with a telescope

Technical specifications

Standard version

Maximum load capacity

500 kg


Maximum jib length

6 m


Pillar height

Up to 4.2 m


Slewing range

270° stepless (manually)


Colour pillar

Light grey RAL 7035


Colour jib arm

Natural-coloured anodised


Travel movement

Manually


Trolleys

Trolleys with quiet plastic rollers


Power supply

Trailing cable


Attachment

Column with base plate (without fastening material)


Lifting device

To be combined with electric chain hoist GP


Customer's benefit

The slewing crane with a jib made of GISKB aluminium profile impresses with the low dead weight of the jib arm and the minimal rolling resistance of the trolley used. Goods with a weight of up to 500 kg can be picked up quickly and safely, and the smooth-running jib allows them to be moved precisely and with minimal effort. This results in a significant reduction in throughput times, which has a positive effect on production costs and productivity.

The pillar-mounted slewing crane consists of a horizontal jib arm that can swing around the pillar and a vertical pillar that is attached to the floor, ceiling or concrete base for mobile use. In combination with a GIS electric chain hoist, a GIS vacuum handling system or another load handling device, you get the complete crane system from a single source.

A column-mounted slewing crane is typically used in workshops, factories or warehouses to move loads in the lower load range safely and efficiently from one place to another.
They are a cost-effective alternative to overhead cranes, not only when their use is not possible due to insufficient ceiling load capacity or too high a ceiling.  Thanks to their long reach, slewing cranes are also ideal for applications in confined spaces where other lifting equipment, such as forklift trucks, cannot reach the goods to be transported.

Accessories & options

  • Radio control or roving pendent
  • Special jib lengths
  • Special pillar heights
  • Slewing jib cranes with telescopic jib
  • Swivel limitations
  • GIS manual chain hoist as lifting device
  • Power supply through C-rail or conductor line
