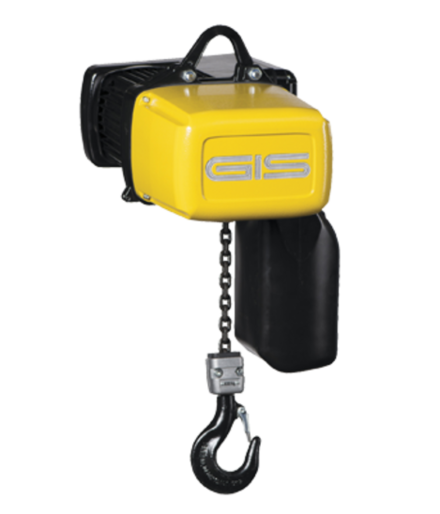

Electric chain hoist with frequency inverter for continuous operation and precise positioning of the load

Electric chain hoist frequency controlled

GPFU250 - 2500, up to 6300 kg
  • Electric chain hoist with frequency inverter
  • For applications with high switching frequency and shift operation
  • Lifting speed up to 9.6 m/min.
  • With soft start for precise and gentle positioning of the load
  • Transportation without overshooting and exact positioning of the load in combination with frequency-controlled motorised trolley
  • Speeds and ramps for lifting and travelling programmable adjusted to the application
  • Protection class IP65
  • Option: motorised trolley with frequency inverter
  • Option: equipped with radio remote control
  • Option: load-dependent lifting

Technical specifications

Standard version

Maximum load capacities (1 or 2 falls)

GPFU250: 320/630 kg, GPFU500: 630/1250 kg, GPFU1000: 1250/2500 kg, GPFU1600: 2000/5000 kg, GPFU2500: 3200/6300 kg

Standard voltage

3 × 400 V / 50 Hz

3 phase motor

2 lifting speeds infinitely variable


24 V/DC low voltage control

Protection class



Eyebolt suspension

Standard lifting height

3 m

Control switch

Ergonomic control switch with emergency-stop and external strain relief

Control cable length

1,8 m

Limit switch

Geared limit switches for highest and lowest hook position

Isolation class (motor)


DC spring-loaded brake

Overload protection

Slipping clutch adjustable and not in the flow of forces

Placement frequency inverter control

GPFU250/500/1000 in chain hoist housing, GPFU1600/2500 in external control box

Customer's benefit

The frequency-controlled electric chain hoists GPFU have proven themselves successfully in a variety of applications. They are often used in tough everyday conditions with long operating times and high switching frequencies, as is the case with multi-shift operation.

2 lifting speeds are infinitely programmable and can be optimally adapted to the transported goods and the application. In addition to the appropriate speeds for precise positioning of the load, the acceleration and braking ramps can also be ideally adjusted to avoid load oscillation.

Accessories & options

  • Other operating voltages on request
  • Other control voltages on request
  • One-handed operation with controller on the load hook
  • Hook suspension
  • Safety load hook
  • Geared limit switch with two additional emergency stops
  • Operating hours and switching counter
  • Temperature monitoring to protect the motor against overheating
  • Brake with manual release
  • Chain bucket for various lifting heights
  • Electric and push trolleys
  • Grease for low temperature or food industry use
  • Radio remote control
  • Lifting slings or lifting handles
  • Option: load-dependent lifting
